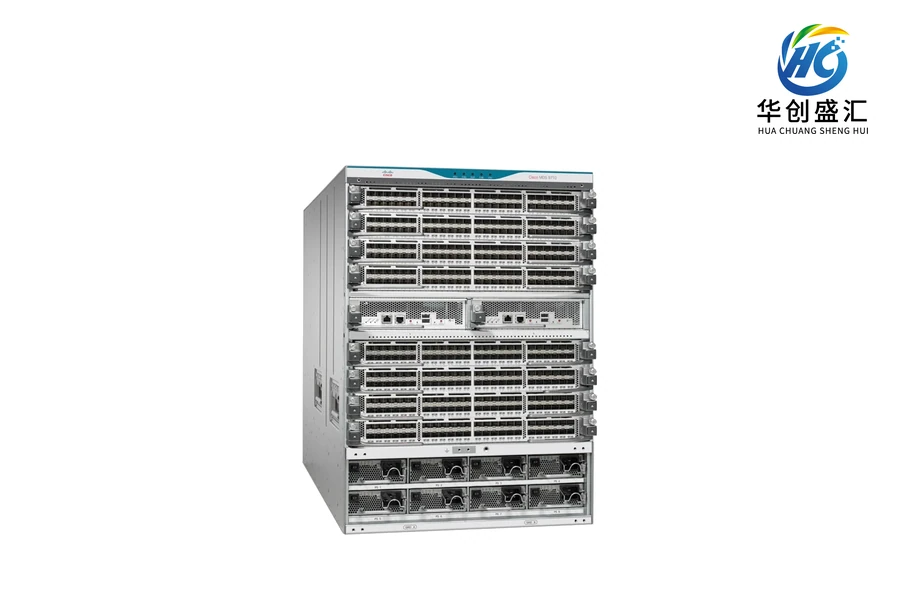

厂家系列官方图片，具体型号外观以实物为准。
思科 Cisco / 交换机
Cisco MDS9710 交换机
产品型号：MDS9710
所属系列：Cisco MDS 9710 Multilayer Director Data Sheet
Cisco MDS9710 交换机，提供官方型号参数与选型咨询。
产品介绍
本页按 Cisco 官方资料中明确列示的 MDS9710 型号整理技术参数。性能测试条件与可选配置以原始资料为准。图片为该产品系列官方展示图，请联系我们确认端口、授权、安装与供货配置。
主要技术参数
| 参数项目 | 参数值 |
|---|---|
| Power supplies | Grid redundancy |
| Chassis slot configuration | ● Line-card slots: 8 ● Supervisor slots: 2 ● Crossbar switching fabric slots: 6 * (3 fabric modules for 16-Gbps line rate and 6 fabric modules for 32-Gbps line rate) ● Fan trays: 3 fan trays at the back of the chassis ● Power supply bays: 8 |
| Performance and scalability 1 | Up to 24-Tbps front-panel Fibre Channel switching bandwidth and 21Tbps of FCoE bandwidth |
| Performance and scalability 3 | 2/4/8-Gbps autosensing; optionally configurable (2G not supported on 32-Gbps module) |
| Performance and scalability 4 | 4/8/16-Gbps autosensing; optionally configurable |
| Performance and scalability 5 | 8/16/32-Gbps autosensing; optionally configurable |
| Performance and scalability 6 | 10-Gbps Fibre Channel |
| Performance and scalability 7 | Buffer credits: 48-port line-rate 16-Gbps advanced Fibre Channel modules: |
| Performance and scalability 8 | Up to 500 per port (dedicated-mode ports) standard |
| Performance and scalability 9 | Up to 4095 on an individual port (dedicated-mode ports with optional Cisco MDS 9700 Enterprise Package license activated) |
| Performance and scalability 10 | Buffer credits: 48-port line-rate 32-Gbps Fibre Channel modules: |
| Performance and scalability 11 | Up to 500 per port (dedicated-mode ports) standard |
参数整理自厂家资料。选型时请结合完整规格、硬件版本与实际配置核对，具体供货及适配以咨询确认为准。
