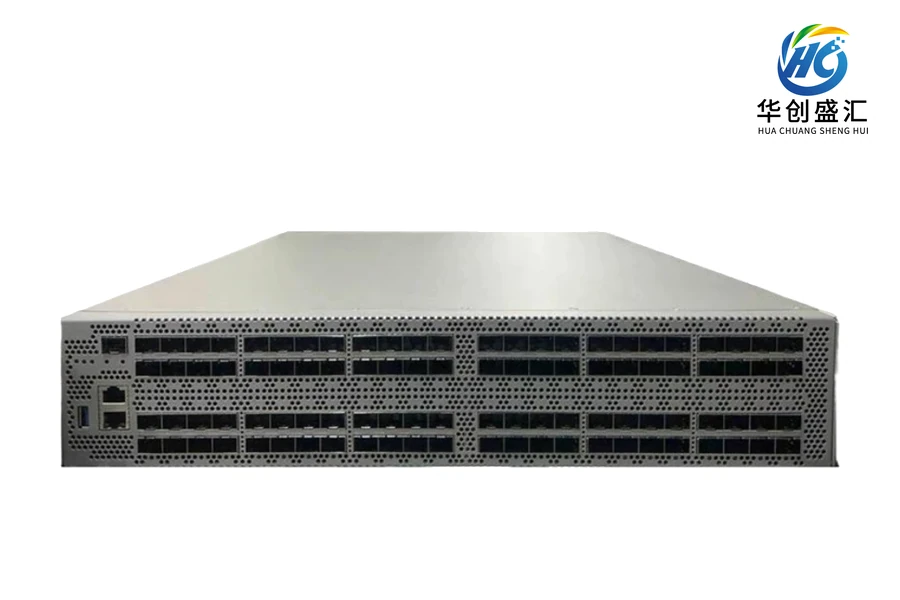

厂家系列官方图片，具体型号外观以实物为准。
思科 Cisco / 交换机
Cisco MDS9396V 交换机
产品型号：MDS9396V
所属系列：Cisco MDS 9396V 64-Gbps 96-Port Fibre Channel Switch Data Sheet
Cisco MDS9396V 交换机，提供官方型号参数与选型咨询。
产品介绍
本页按 Cisco 官方资料中明确列示的 MDS9396V 型号整理技术参数。性能测试条件与可选配置以原始资料为准。图片为该产品系列官方展示图，请联系我们确认端口、授权、安装与供货配置。
主要技术参数
| 参数项目 | 参数值 |
|---|---|
| Fibre Channel ports | ● Fixed form factor switch with 48 SFP+ ports base supporting 64G, 32G, 16G and 8G speeds ● It can scale up to 96-Ports in 16 port increments. ● Supports 64G, 32G and 16G Optics ● Fibre Channel standard port types: E and F ● Fibre Channel enhanced port types: SD, ST, TE, TF, NP, and TNP |
| Physical dimensions (H x W x D) and weight | ● 2 Rack Unit (2RU) 3.4 x 17.4 x 23.9 in (8.64 x44.23 x 60.73cm) 44 lb (20 kg) |
| Power 1 | 80 Plus Platinum certified power supplies |
| Power 3 | 1400W AC port-side exhaust variant (2 per switch) |
| Power 4 | 1400W AC in base model, port-side intake variant (2 per switch) |
| Power 5 | 2000W AC/ HVAC/ HVDC in base model, Port side Intake (2 per switch) |
| Power 7 | Notched C15 socket connector connecting to C16 plug on the power supply receptacle for 1400W Power Supply |
| Power 9 | 1400W PSU AC Low Line Input: 90V to 140 V |
| Power 10 | 1400W PSU AC High Line input: 180V to 264V |
| Power 11 | 2000W PSU AC Low Line input: 90V to 140V |
| Power 12 | 2000W PSU AC High Line input: 180V to 305V |
| Power 13 | 2000W PSU DC input: 192V to 400V |
参数整理自厂家资料。选型时请结合完整规格、硬件版本与实际配置核对，具体供货及适配以咨询确认为准。
