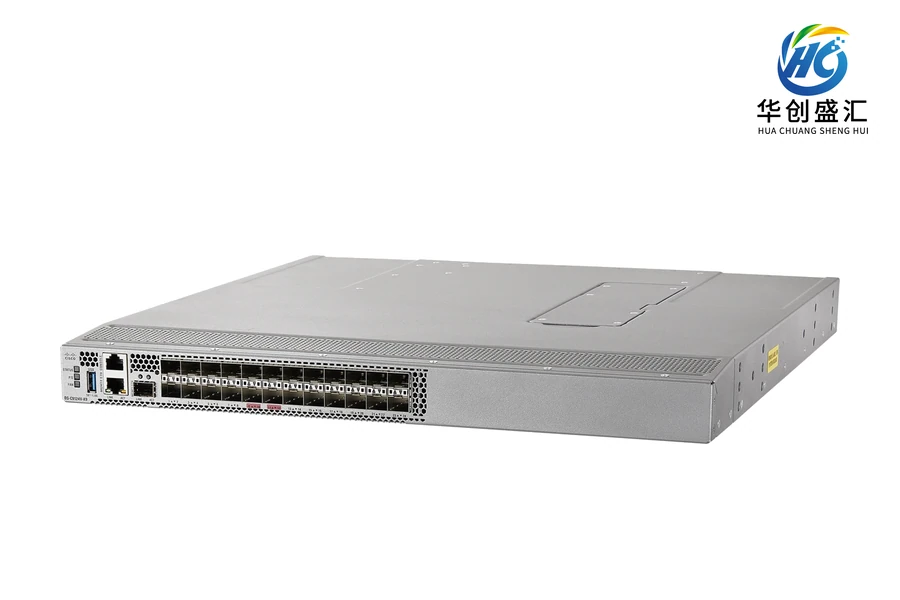

厂家系列官方图片，具体型号外观以实物为准。
思科 Cisco / 交换机
Cisco MDS9124V 交换机
产品型号：MDS9124V
所属系列：Cisco MDS 9124V 64-Gbps 24-Port Fibre Channel Switch Data Sheet
Cisco MDS9124V 交换机，提供官方型号参数与选型咨询。
产品介绍
本页按 Cisco 官方资料中明确列示的 MDS9124V 型号整理技术参数。性能测试条件与可选配置以原始资料为准。图片为该产品系列官方展示图，请联系我们确认端口、授权、安装与供货配置。
主要技术参数
| 参数项目 | 参数值 |
|---|---|
| Fibre Channel ports | ● Fixed-switch form factor with 24 SFP+ ports base |
| Physical dimensions (H x W x D) and weight | ● 1 Rack Unit (1RU) (1.72 x 17.299 x 18 in. [4.37 x 43.94 x 45.72 cm]) excluding Power Supply Unit (PSU) and fan-tray handles ● 18.73 lb. (8.5 kg) |
| Power 1 | 80 Plus Platinum certified power supplies |
| Power 3 | 500W AC in base model, port-side exhaust variant (2 per switch) |
| Power 4 | 500W AC in base model, port-side intake variant (2 per switch) |
| Power 5 | 1200W AC/ HVAC/ HVDC in base model, Bidirectional airflow (2 per switch) |
| Power 7 | Notched C15 socket connector connecting to C16 plug on the power supply receptacle for 500W Power Supply |
| Power 8 | Standard CAB-HVAC-C14-2M IEC C14 to Saf-d-grid connector on the power supply receptacle for 1200W Power Supply |
| Power 10 | 500W PSU AC input: 100 to 240 VAC (10% range) |
| Power 11 | 1200W PSU AC input: 90V to 305V |
| Power 12 | 1200W PSU DC input: 192V to 400V |
| Power 13 | Frequency: 50 to 60 Hz (nominal) |
参数整理自厂家资料。选型时请结合完整规格、硬件版本与实际配置核对，具体供货及适配以咨询确认为准。
