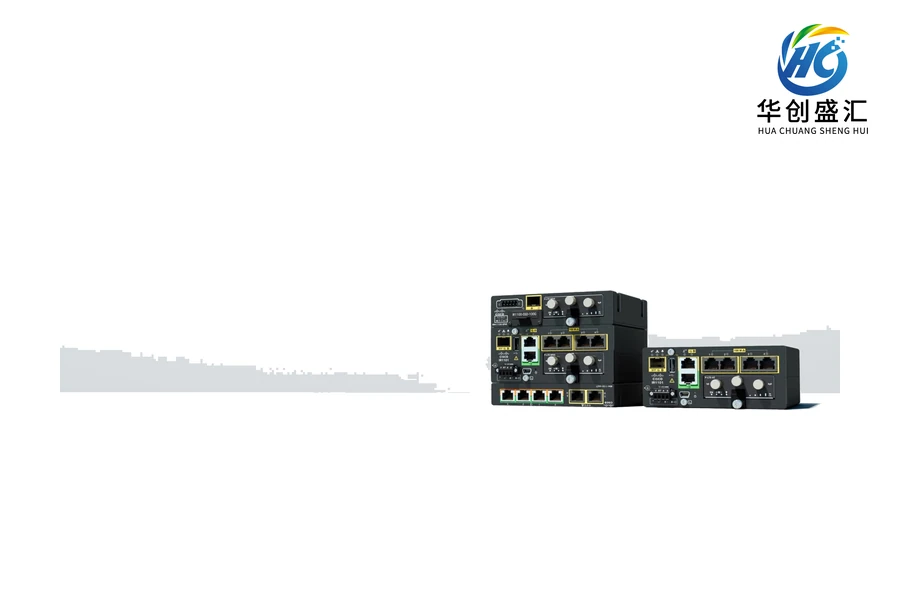

厂家系列官方图片，具体型号外观以实物为准。
思科 Cisco / 路由器
Cisco IR1101 路由器
产品型号：IR1101
所属系列：Cisco Catalyst IR1101 Rugged Series Router Data Sheet
Cisco IR1101 路由器，提供官方型号参数与选型咨询。
产品介绍
本页按 Cisco 官方资料中明确列示的 IR1101 型号整理技术参数。性能测试条件与可选配置以原始资料为准。图片为该产品系列官方展示图，请联系我们确认端口、授权、安装与供货配置。
主要技术参数
| 参数项目 | 参数值 |
|---|---|
| Physical dimensions (H x W x D) Chassis Expansion Module (IRM-1100-SP or IRM-1100-SPMI) Expansion Module (IRM-1100-4A2T or IRM-1100-4S-8I) | 2.36 in. x 5.22 in. x 4.92 in. (60 x 132.5 x 124.9 mm) 1.3 in. x 5.2 in. x 4.9 in. (33 x 132 x 124 mm) 0.9 in. x 5.2 in. x 4.9 in. (23 x 132 x 124 mm) |
| Weight Chassis Expansion Module IRM-1100-SPMI: IRM-1100-SP: IRM-1100-4A2T or IRM-1100-4S8I: | 2.25 lbs (1.02 kg) 1.65 lbs (0.75 kg) 1.45 lbs (0.66 kg) 0.94 lbs (0.43 kg) |
| Power specifications | Nominal voltage: +/-12V to +/-48V DC Minimum and maximum input voltage: 9.6-60V DC Maximum and minimum input current: 1.24A (9.6V DC) and 0.26A (60V DC) |
| Power consumption | At idle: 6.6W Typical: 9.8W Maximum: 12W Additional 10W (typical) with -SP or -SPMI expansion module and 2nd cellular Additional 6.4W with IRM-1100-4S8I expansion module |
| Ethernet Interfaces | ● 2 x GE RJ45 LAN ports on serial expansion module |
| Operating altitude | ● 40°C up to 13,800 ft (operating) per IEC 68-2-41 |
| Power supply | Description |
| Antenna and lightening arrestors | Description |
| Power specifications and consumption | Table 6: System Specifications for Cisco Catalyst IR1101 Rugged Series Router |
| Operating temperature, industry standards, EMC emissions | Table 6: System Specifications for Cisco Catalyst IR1101 Rugged Series Router |
参数整理自厂家资料。选型时请结合完整规格、硬件版本与实际配置核对，具体供货及适配以咨询确认为准。
