思科 Cisco / 无线覆盖

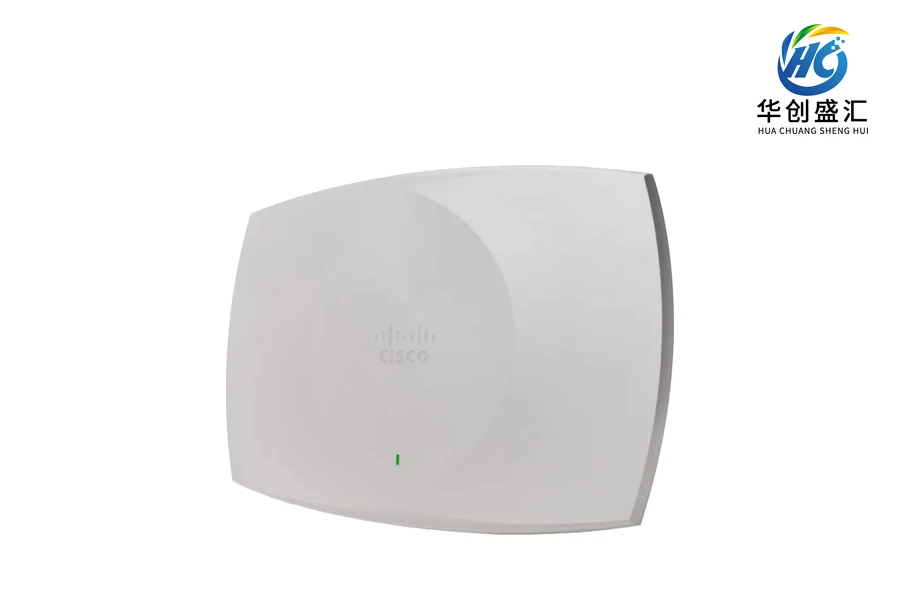

Cisco CW9179F 无线接入点
产品型号：CW9179F
所属系列：Cisco Wireless access points
Cisco CW9179F 无线接入点，提供官方型号参数与选型咨询。
产品介绍
本页按 Cisco 官方资料中明确列示的 CW9179F 型号整理技术参数。性能测试条件与可选配置以原始资料为准。图片为该产品系列官方展示图，请联系我们确认端口、授权、安装与供货配置。
主要技术参数
| 参数项目 | 参数值 |
|---|---|
| Supported wireless LAN controllers | Catalyst 9800 Series Wireless Controllers (physical or virtual) Cisco Catalyst 9000 switches with Embedded Wireless Controller in SDA mode |
| Integrated antenna | 2.4 directional 5 directional 5 directional 6 directional IoT omnidirectional GNSS omnidirectional Peak Gain 6 dBi 12 dbi 12 dbi 12 dBi (boresight) 7 dBi (wide) 6 dBi 6 dBi (front) 3 dBi (back) |
| Interfaces | 2x 100M/1000M/2.5G/5G/10G Multigigabit Ethernet (RJ-45) Management console port (RJ-45) with default speed of 115200 bps |
| Dimensions (W x L x H) | Access point (without mounting brackets): 18.7Wx 13.0Lx 2.9H in. (475mm x 330mm x 73mm) |
| Weight | AP Weight: 10.0 lb (4.54 kg) Bracket Weight: 3.8 lbs (1.72 kg) |
| Input power requirements | 802.3bt Cisco Universal PoE (Cisco UPOE®), 802.3at Power over Ethernet Plus (PoE+), 802.3af PoE (only for configuring staging, all radios off) (Or) Cisco Power Injector – CW-INJ-8 |
| Power Source | 2.4 GHz radio |
| Power Source | Idle |
| Available transmit power settings | 2.4 GHz 17 dBm (50 mW) -10 dBm (0.1mW) |
参数整理自厂家资料。选型时请结合完整规格、硬件版本与实际配置核对，具体供货及适配以咨询确认为准。
