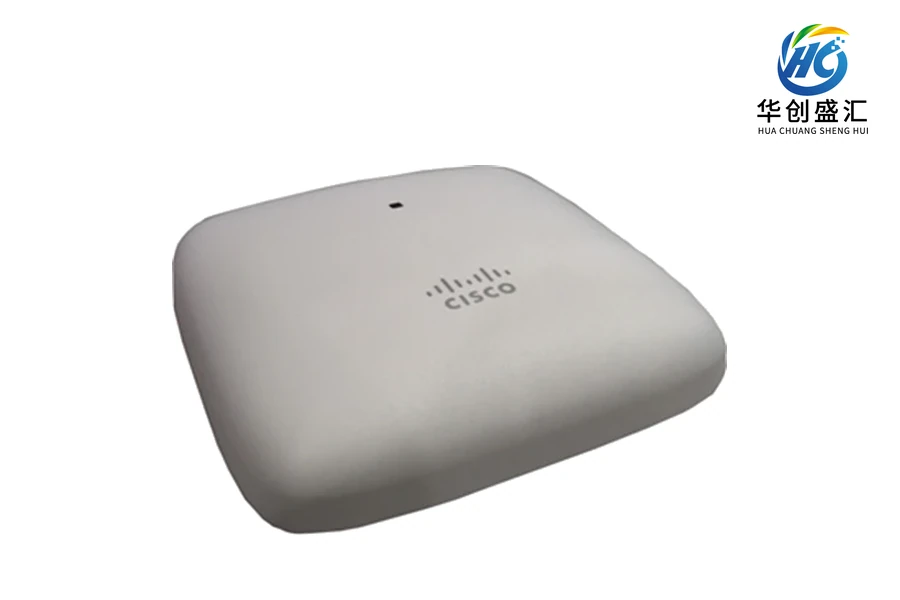

厂家系列官方图片，具体型号外观以实物为准。
思科 Cisco / 无线覆盖
Cisco CBW240AC 无线接入点
产品型号：CBW240AC
所属系列：Cisco Business 240AC Access Point Data Sheet
Cisco CBW240AC 无线接入点，提供官方型号参数与选型咨询。
产品介绍
本页按 Cisco 官方资料中明确列示的 CBW240AC 型号整理技术参数。性能测试条件与可选配置以原始资料为准。图片为该产品系列官方展示图，请联系我们确认端口、授权、安装与供货配置。
主要技术参数
| 参数项目 | 参数值 |
|---|---|
| 802.11ac Wave 1 and 2 capabilities with MU‑MIMO technology | The IEEE 802.11ac standard delivers improved experience in typical environments, and more predictable performance for advanced applications such as 4K or 8K video, high-density high-definition collaboration apps, all-wireless offices, and Internet of Things (IoT). Supporting four spatial streams, MU-MIMO enables access points to split spatial streams between client devices, to maximize throughput. |
| Maximum clients | ● Maximum number of associated wireless clients: 200 per Wi-Fi radio, in total 400 clients per access point, or 1000 in a system |
| 802.11ac | ● 4x4 Downlink (DL) MU-MIMO with four spatial streams, up to 1733 Mbps ● 802.11ac beamforming ● 20, 40, 80 MHz channels ● Dynamic Frequency Selection (DFS) |
| Ethernet ports | ● Authentication with 802.1X or MAC filtered ● Dynamic VLAN or per port |
| Interfaces | ● 2 x Gigabit (10/100/1000BASE-T autosensing), Power over Ethernet (PoE) ● RJ-45 console port (not functional) ● USB 2.0 (not functional) |
| Dimensions (W x L x H) | ● Access point (without mounting brackets): 7 x 7 x 1.5 in |
| Weight | ● 0.94 lb (0.43 kg) |
| Powering options | ● 802.3af/at Ethernet switch, a Cisco Business Switch with PoE is recommended ● Optional Cisco Business Power over Ethernet injector (CB-PWRINJ-xx) |
| Power draw | ● 13.2W |
| Data rates supported | 802.11b: 1, 2, 5.5, and 11 Mbps |
参数整理自厂家资料。选型时请结合完整规格、硬件版本与实际配置核对，具体供货及适配以咨询确认为准。
