思科 Cisco / 无线覆盖

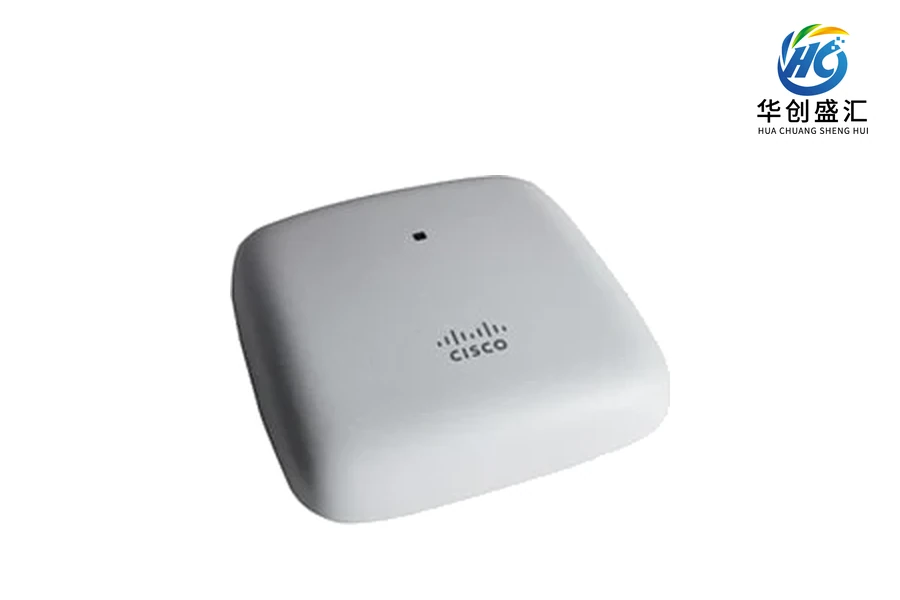

Cisco CBW140AC 无线接入点
产品型号：CBW140AC
所属系列：Cisco Business 140AC Access Point Data Sheet
Cisco CBW140AC 无线接入点，提供官方型号参数与选型咨询。
产品介绍
本页按 Cisco 官方资料中明确列示的 CBW140AC 型号整理技术参数。性能测试条件与可选配置以原始资料为准。图片为该产品系列官方展示图，请联系我们确认端口、授权、安装与供货配置。
主要技术参数
| 参数项目 | 参数值 |
|---|---|
| Maximum clients | ● Maximum number of associated wireless clients: 200 per Wi-Fi radio, for a total of 400 clients per access point, or 1000 in a system |
| 802.11ac | ● 2x2 single-user/multi-user MIMO with two spatial streams, up to 867 Mbps in 5GHz ● 20-, 40-, and 80-MHz channels ● Dynamic Frequency Selection (DFS) |
| Ethernet ports | ● Authentication with 802.1X or MAC filtered ● Dynamic VLAN or per port ● Traffic locally switched or tunneled back to Master AP |
| Data rates supported | 802.11a: 6, 9, 12, 18, 24, 36, 48, and 54 Mbps |
| Interfaces | ● 1x Gigabit Ethernet (10/100/1000BASE-T autosensing), Power over Ethernet (PoE) ● RJ-45 console port (not functional) |
| Dimensions (W x L x H) | ● Access point (without mounting bracket): 6 x 6 x 1.3 in. (150.8 x 150.8 x 33 mm) |
| Weight | ● Access point without mounting bracket or any other accessories: 14 oz (400 g) |
| Powering options | ● 802.3af/at Ethernet switch; a Cisco Business switch with PoE is recommended ● Optional Cisco Business PoE injector |
| Power draw | ● 8.3W (maximum, on PoE) |
参数整理自厂家资料。选型时请结合完整规格、硬件版本与实际配置核对，具体供货及适配以咨询确认为准。
