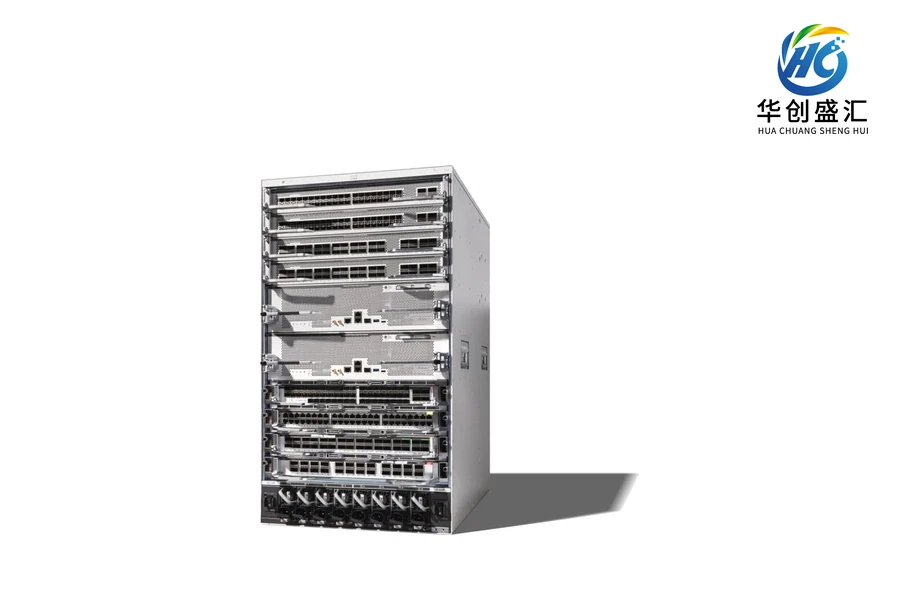

厂家系列官方图片，具体型号外观以实物为准。
思科 Cisco / 交换机
Cisco C9610R 交换机
产品型号：C9610R
所属系列：Cisco C9610 Series Smart Switches
Cisco C9610R 交换机，提供官方型号参数与选型咨询。
产品介绍
本页按 Cisco 官方资料中明确列示的 C9610R 型号整理技术参数。性能测试条件与可选配置以原始资料为准。图片为该产品系列官方展示图，请联系我们确认端口、授权、安装与供货配置。
主要技术参数
| 参数项目 | 参数值 |
|---|---|
| Dimensions (H x W x D) | 31.47 x 17.4 x 26.1 inches (79.93 x 44.20 x 66.29 cm) |
| Chassis weight with 8 power supplies (AC) and 4 fan trays | 266.0 lbs (120.7 kg) |
| Operating temperature | -5° to 45°C (23° to 113°F) at sea level -5° to 40°C (23° to 104°F) up to 6000 feet (1.83 km) |
| Storage temperature | 40° to 167°F (-40° to 75°C) |
| Mean time between failures (MTBF) (hours) | C9610R: 257,200 C9610-FAN: 1,155,370 C9600-PWR-3KWAC: 300,000 C9600-PWR-2KWAC: 300,000 C9600-PWR-2KWDC: 300,000 |
| Chassis weight (without fan trays or PSUs) | 184.0 lbs (83.5kg) |
| Weight of fan tray | 13.98 lbs (6.34 kg) |
| Weight of individual PSUs | C9600-PWR-3KWAC: 3.09 lbs (1.48 kg) C9600-PWR-2KWAC: 2.60 lbs (1.18 kg) C9600-PWR-2KWDC: 2.82 lbs (1.28 kg) |
| Chassis weight with 4 3000W PSUs and 4 fan trays | 253.04 lbs (114.78 kg) |
| BTU (British Thermal Unit) of C9610R chassis with fan tray | 15,164 (max) |
参数整理自厂家资料。选型时请结合完整规格、硬件版本与实际配置核对，具体供货及适配以咨询确认为准。
