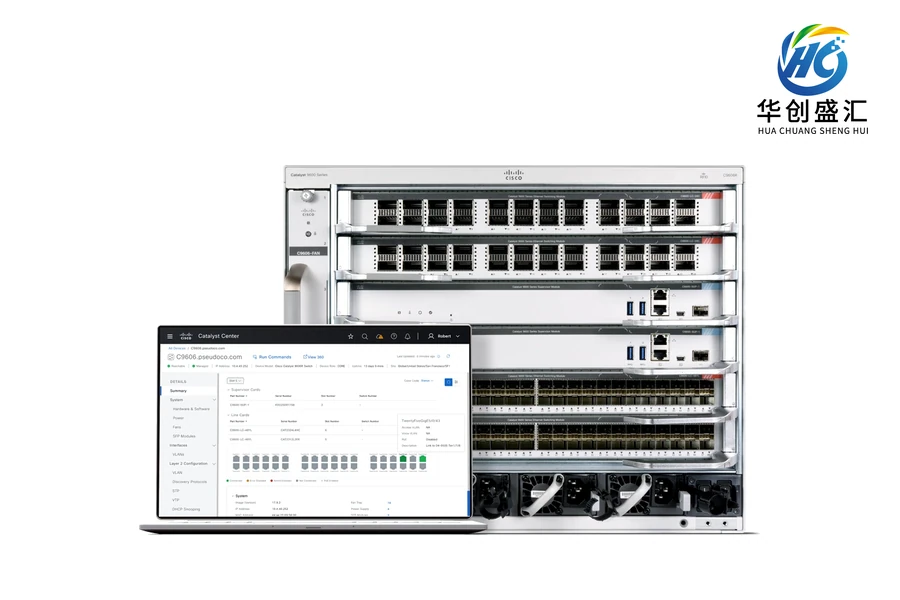

厂家系列官方图片，具体型号外观以实物为准。
思科 Cisco / 交换机
Cisco C9606R 交换机
产品型号：C9606R
所属系列：Cisco Catalyst 9600 Series Switches
Cisco C9606R 交换机，提供官方型号参数与选型咨询。
产品介绍
本页按 Cisco 官方资料中明确列示的 C9606R 型号整理技术参数。性能测试条件与可选配置以原始资料为准。图片为该产品系列官方展示图，请联系我们确认端口、授权、安装与供货配置。
主要技术参数
| 参数项目 | 参数值 |
|---|---|
| Dimensions (H x W x D) | 35.43 x 44.2 x 40.9 cm 13.95 x 17.4 x 16.1 inches |
| Chassis weight with 2 power supplies (AC) and fan tray | 31.31 kg (69.03 lbs) |
| Operating temperature | -5° to 45° C (23° to 113° F) up to 6000 feet (about 1.83 km) -5° to 40° C (23° to 104° F) up to 10,000 feet (about 3.05 km) |
| Storage temperature | -40° to 75° C (40° to 167° F) |
| Mean time between failures (MTBF) (hours) | C9606R 4,113,900 C9606-FAN: 452,570 C9600-PWR-3KWAC: 300,000 C9600-PWR-2KWAC: 300,000 C9600-PWR-2KWDC: 300,000 |
| Chassis weight (without fan tray, without PSU) | 25.36 kg (55.90 lbs) |
| Weight of fan tray | 3.56 kg (7.85 lbs) |
| Weight of individual PSUs | AC PSU (3000W): 1.4 kg (3.09 lbs) AC PSU (2000W): 1.2 kg (2.65 lbs) DC PSU (2000W): 1.28 kg (2.82 lbs) |
| BTU (British Thermal Unit) of 9606R chassis with fan tray | 1,621 (max) |
参数整理自厂家资料。选型时请结合完整规格、硬件版本与实际配置核对，具体供货及适配以咨询确认为准。
