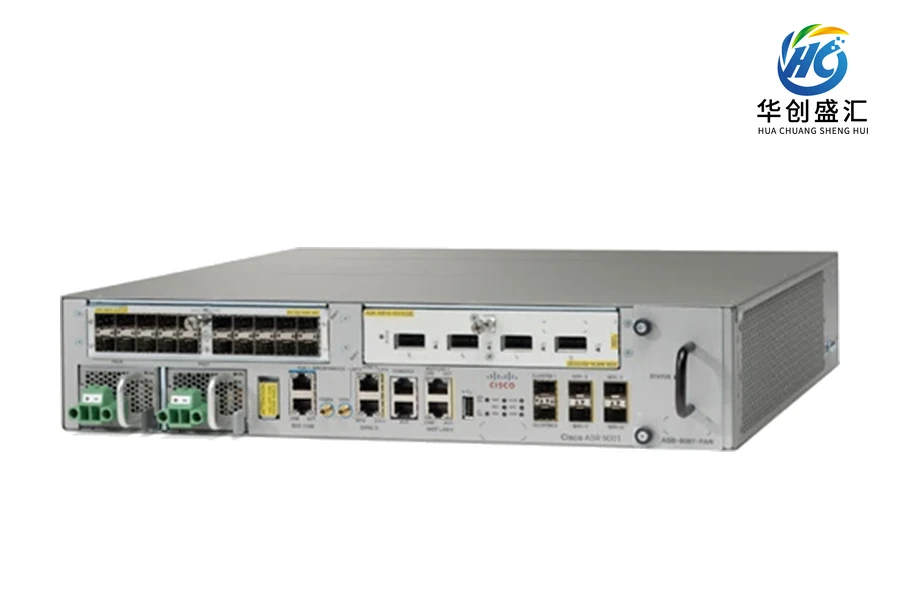

Official manufacturer family image; appearance may vary by model.
思科 Cisco / Routers
Cisco ASR9001 Router
Model：ASR9001
Product family：Cisco ASR 9001 Router Data Sheet
Cisco ASR9001 router with official model specifications and configuration support.
Product overview
Specifications are transcribed from the explicit ASR9001 model column in Cisco documentation. Performance test conditions and optional configurations follow the source data sheet. The image is an official series illustration. Contact us to confirm ports, licensing, installation and supply configuration.
Key technical specifications
| Specification | Value |
|---|---|
| Integrated interfaces | 4 x 10 GE SFP+ |
| Modular port adapters | 20 x 1 GE, 2 x 10 GE, 4 x 10 GE, 1 x 40 GE |
| Power supply part number | ● A9K-750W-AC ● A9K-750W-DC |
| Power inputs | ● Worldwide ranging AC (90-265V; 50-60 Hz) ● Worldwide ranging DC (-40V to -72V) |
| Power consumption | 425 watts typical, 525 watts maximum |
| Operating temperature (nominal) | 41 to 104ºF (5 to 40ºC) |
| Operating temperature (short-term) | 23 to 131ºF (-5 to 55ºC) |
| Storage temperature | -40 to 158ºF (-40 to 70ºC) |
| Storage (relative humidity) | 5 to 95% Note: Not to exceed 0.024 kg water or dry air |
Specifications are compiled from manufacturer references. Confirm the full specification, hardware version, configuration, availability and compatibility before ordering.
