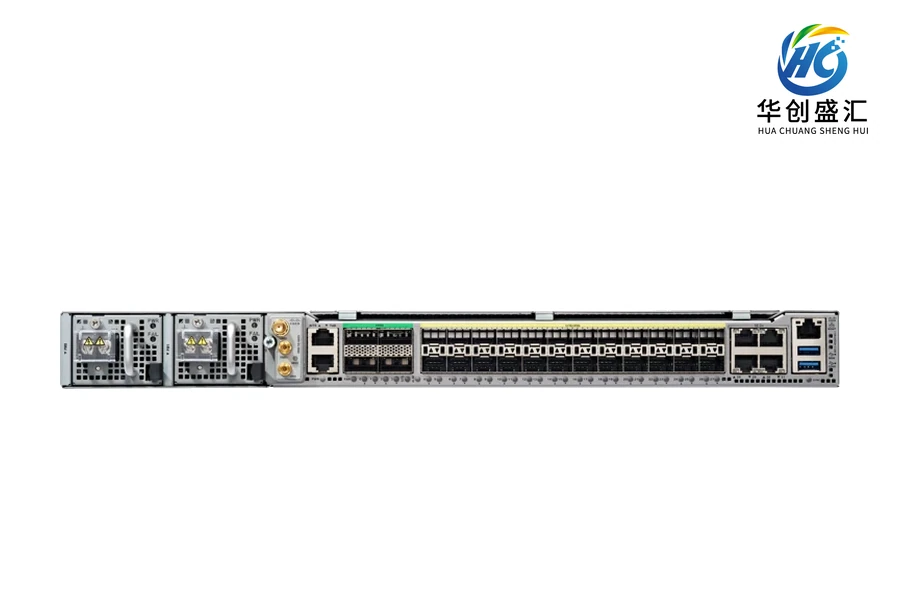

厂家系列官方图片，具体型号外观以实物为准。
思科 Cisco / 路由器
Cisco 8011-32Y8L2H2FH 路由器
产品型号：8011-32Y8L2H2FH
所属系列：Cisco 8000 Series Routers
Cisco 8011-32Y8L2H2FH 路由器，提供官方型号参数与选型咨询。
产品介绍
本页按 Cisco 官方资料中明确列示的 8011-32Y8L2H2FH 型号整理技术参数。性能测试条件与可选配置以原始资料为准。图片为该产品系列官方展示图，请联系我们确认端口、授权、安装与供货配置。
主要技术参数
| 参数项目 | 参数值 |
|---|---|
| Memory | 16GB DRAM |
| Storage | 38GB eMMC |
| Interfaces | 2 ports 400G QSFP56-DD 2 ports 100G QSFP28 8 ports 10/25/50G SFP56 32 ports 1/10/25G SFP28 |
| Performance | Up to 480 Mpps |
| Power supplies | Modular redundant (AC/DC) |
| Fans | Modular fans with redundancy |
| Operating temperature range | C-Temp -5° to +55°C (+32° to +140°F) |
| Non-operating (storage) temperature | -40° to +70°C (-40° to +158°F) |
| Storage (relative) humidity | 5% to 95% at 40°C (104°F) for 96 hours as per NEBS GR-63-Core |
| Power | Worldwide ranging AC (90 to 264V; 50 to 60 Hz) Worldwide ranging DC (–40.8V to –72V) |
| Timing ports | Time of Day (ToD) and Building Integrated Timing Supply (BITS) 8000-TIC: 1 PPS, 10 MHz 8000-TIC-GNSS (internal GNSS PRTC-B module): 1 PPS, 10 MHz, ANT |
| Management interfaces | USB console port USB memory port RS-232 console port 10/100/1000M RJ-45 Ethernet out-of-band management port |
参数整理自厂家资料。选型时请结合完整规格、硬件版本与实际配置核对，具体供货及适配以咨询确认为准。
